I am trying to create a table with linked records using a one-to-many relationship.


How would I create a Contacts table with a link to ContactPhones where a single Contact record is linked to multiple ContactPhones records?


Below is one of the things I have tried based on the base.createTableAsync and the FieldType documentation.


import { FieldType } from "@airtable/blocks/models";
import { useBase } from "@airtable/blocks/ui";

export async function createContactAirTables() {
const base = useBase();

if (!base.getTableByNameIfExists('ContactPhones_')){

await base.createTableAsync("ContactPhones_",
[
{name: 'Id', type: FieldType.SINGLE_LINE_TEXT},
{name: 'PhoneNumber', type: FieldType.SINGLE_LINE_TEXT}

]);
}

if (!base.getTableByNameIfExists('Contacts_')){

await base.createTableAsync("Contacts_",
[
{name: 'Id', type: FieldType.SINGLE_LINE_TEXT},
{name: 'BusinessName', type: FieldType.SINGLE_LINE_TEXT},
{name: 'ContactName', type: FieldType.SINGLE_LINE_TEXT},
{name: 'ContactPhones', type: FieldType.MULTIPLE_RECORD_LINKS,
options: {
linkedTableId: base.getTableByName('ContactPhones_').id
}
}

]);

}
};

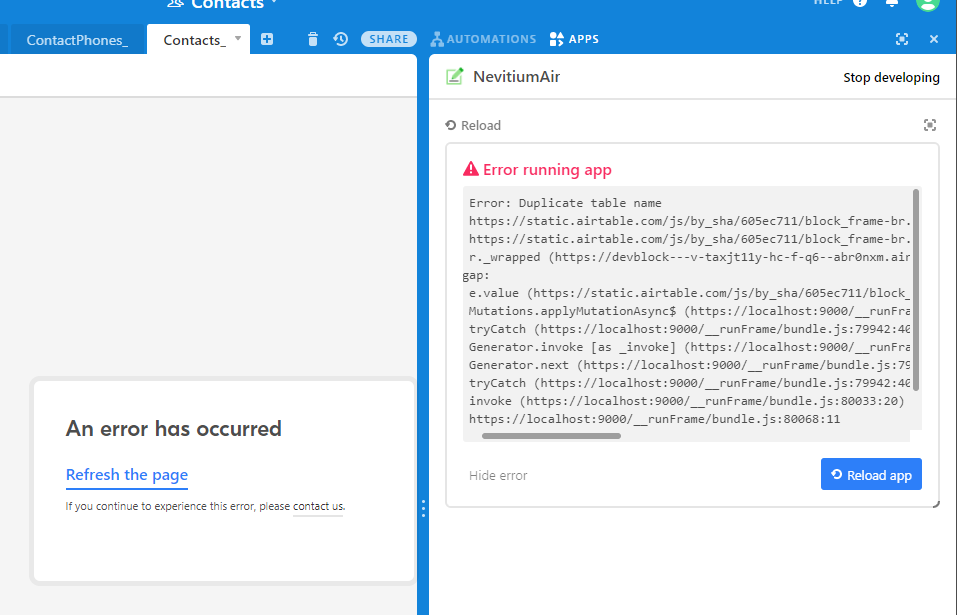

This is the error I’m getting:

I got it working with this code:

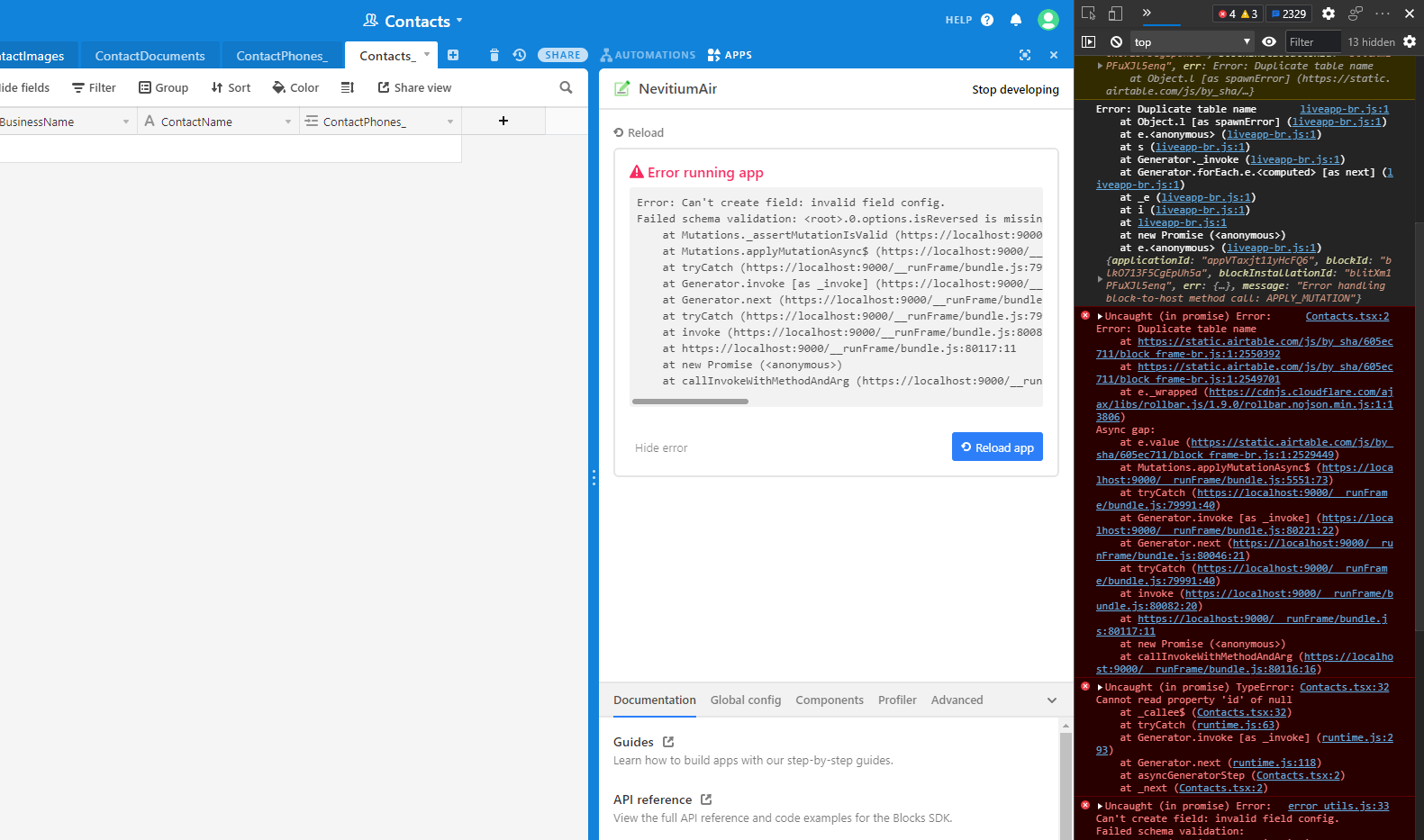

Thise creates the tables and the proper linking fields and it all works perfect, however I keep seeing errors only when the tables are first created (this code is run when none of the tables exist).



Console log text:


[radacted]

liveapp-br.js:1 Error: Duplicate table name

at Object.l [as spawnError] (liveapp-br.js:1)

at e.<anonymous> (liveapp-br.js:1)

at s (liveapp-br.js:1)

at Generator._invoke (liveapp-br.js:1)

at Generator.forEach.e.<computed> [as next] (liveapp-br.js:1)

at _e (liveapp-br.js:1)

at i (liveapp-br.js:1)

at liveapp-br.js:1

at new Promise (<anonymous>)

at e.<anonymous> (liveapp-br.js:1) {applicationId: "appVTaxjt11yHcFQ6", blockId: "blkO713F5CgEpUh5a", blockInstallationId: "blitXm1PFuXJl5enq", err: {…}, message: "Error handling block-to-host method call: APPLY_MUTATION"}

Contacts.tsx:2 Uncaught (in promise) Error: Error: Duplicate table name

at https://static.airtable.com/js/by_sha/605ec711/block_frame-br.js:1:2550392

at https://static.airtable.com/js/by_sha/605ec711/block_frame-br.js:1:2549701

at r._wrapped (https://devblock---v-taxjt11y-hc-f-q6--abr0nxm.airtableblocks.com/__runFrame?blockId=blkO713F5CgEpUh5a&isDevelopment=1&shouldEnforceCspForDevelopmentApps=reportOnly:103:440)

Async gap:

at e.value (https://static.airtable.com/js/by_sha/605ec711/block_frame-br.js:1:2529449)

at Mutations.applyMutationAsync$ (https://localhost:9000/__runFrame/bundle.js:5551:73)

at tryCatch (https://localhost:9000/__runFrame/bundle.js:79991:40)

at Generator.invoke eas _invoke] (https://localhost:9000/__runFrame/bundle.js:80221:22)

at Generator.next (https://localhost:9000/__runFrame/bundle.js:80046:21)

at tryCatch (https://localhost:9000/__runFrame/bundle.js:79991:40)

at invoke (https://localhost:9000/__runFrame/bundle.js:80082:20)

at https://localhost:9000/__runFrame/bundle.js:80117:11

at new Promise (<anonymous>)

at callInvokeWithMethodAndArg (https://localhost:9000/__runFrame/bundle.js:80116:16)

(anonymous) @ block_frame-br.js:1

(anonymous) @ block_frame-br.js:1

r._wrapped @ __runFrame?blockId=blkO713F5CgEpUh5a&isDevelopment=1&shouldEnforceCspForDevelopmentApps=reportOnly:103

Promise.then (async)

>RADACTED]

Contacts.tsx:32 Uncaught (in promise) TypeError: Cannot read property 'id' of null

at _callee$ (Contacts.tsx:32)

at tryCatch (runtime.js:63)

at Generator.invoke eas _invoke] (runtime.js:293)

at Generator.next (runtime.js:118)

at asyncGeneratorStep (Contacts.tsx:2)

at _next (Contacts.tsx:2)

_callee$ @ Contacts.tsx:32

>RADACTED]

r._wrapped @ __runFrame?blockId=blkO713F5CgEpUh5a&isDevelopment=1&shouldEnforceCspForDevelopmentApps=reportOnly:103

error_utils.js:33 Uncaught (in promise) Error: Can't create field: invalid field config.

Failed schema validation: <root>.0.options.isReversed is missing, <root>.0.options.linkedTableId is missing, <root>.1.options.linkedTableId is missing, inverseLinkFieldId is not included in the <root>.1.options schema

at Mutations._assertMutationIsValid (mutations.js:475)

at Mutations.applyMutationAsync$ (mutations.js:113)

at tryCatch (runtime.js:63)

at Generator.invoke eas _invoke] (runtime.js:293)

at Generator.next (runtime.js:118)

at tryCatch (runtime.js:63)

at invoke (runtime.js:154)

at runtime.js:189

at new Promise (<anonymous>)

at callInvokeWithMethodAndArg (runtime.js:188)

spawnErrorWithOriginOmittedFromStackTrace @ error_utils.js:33

Your problem might be because you’re calling asynchronous actions outside of an asynchronous function.


Your problem might be because you’re calling asynchronous actions outside of an asynchronous function.



Yeah, I was calling createContactAirTables() from the main function body of the App so it was getting invoked on each table change causing numerous race conditions/collisions. I mapped the function call to a button and it cleared up all the errors I was seeing. Thanks!
