Hi community,

I recently had to solve the situation where I needed to get URLs from hyperlinks stored in rich text formatted long text fields and put them in another long text field. Essentially, just showing the URL, not the hyperlinked text. I ended up adapting the "Convert attachments to URLs" script (posted by Alex Wolfe). I had found a post here, that used a regex expression but this seemed to only work for visible URLs. I never could get it to work for my use case. I'd love feedback on what I could have done differently/better as I'm sure I haven't thought of everything... or even may have just completely missed something obvious.

Thanks!

// Script settings - Click the gear icon for the Scripting app to surface these anytime
// Surfaces options to select the table, view, and fields needed in the script
let config = input.config({
title: '🔗 Extract URLs from hyperlinks',
description: 'Extracts URLs from hyperlinks stored in Long Text fields with rich text formatting enabled.',
items: [
input.config.table('selectedTable', {
label: 'Table',
description: 'Select the table containing the field with hyperlinks',
}),
input.config.field('hyperlinkField', {
label: 'Field with hyperlinks:',
parentTable: 'selectedTable',
description: 'Select the field containing the hyperlinks',
}),
input.config.field('theURLField', {
label: 'Write URL to:',
parentTable: 'selectedTable',
description: 'Select the field to store the extracted URLs',
}),
]
});

// Codes the selections above to variables for the script
let selectedTable = config.selectedTable;
let hyperlinkField = config.hyperlinkField;
let theURLField = config.theURLField;

async function extractURLs() {
if (theURLField.type !== 'multilineText') {
output.text(`"${theURLField.name}" is not a multiline text field. Run the script again with a multiline text field.`);
return;
}
console.log("Script running...");
// Loads the records and field from the selections above
let query = await selectedTable.selectRecordsAsync({
fields: [hyperlinkField],
});
let records = query.records;

// Array for records with URLs extracted from the hyperlink field
let urlsToWrite = [];

// Regular expression to extract URLs from Markdown-style hyperlinks
const urlRegex = /\[.*?\]\((.*?)\)/g;

// Loop through qualified records and extract URLs
for (let i = 0; i < records.length; i++) {
let recID = records[i].id;
let hyperlinkContent = records[i].getCellValue(hyperlinkField);
if (hyperlinkContent !== null && typeof hyperlinkContent === 'string') {
// Extract URLs from the hyperlink field using the regular expression
let match;
let extractedUrls = [];
while ((match = urlRegex.exec(hyperlinkContent)) !== null) {
extractedUrls.push(match[1]);
}

// Store the extracted URLs in the array to be written to the URL field
urlsToWrite.push({
id: recID,
fields: {
[theURLField.name]: extractedUrls.join(', '),
},
});
}
}

// Update records in smaller batches
const batchSize = 50;
const totalBatches = Math.ceil(urlsToWrite.length / batchSize);
let batchCount = 0;

for (let i = 0; i < urlsToWrite.length; i += batchSize) {
const batchUpdate = urlsToWrite.slice(i, i + batchSize);
console.log(`\nProcessing Batch ${batchCount + 1} of ${totalBatches}`);
await showRunningMessage(); // Show running message and wait for a short period
await selectedTable.updateRecordsAsync(batchUpdate);
//console.log(`\nUpdated ${batchUpdate.length} records in Batch ${batchCount + 1}`);
batchCount++;
}
}

// Function to display a simple message and wait for a short period
async function showRunningMessage() {
await pseudoDelay(1000); // Simulate delay using loop for 1000 milliseconds (1 second)
}

// Function to create a delay using async/await and Promise
function pseudoDelay(milliseconds, value) {
return new Promise((resolve) => {
const start = Date.now();
while (Date.now() - start < milliseconds) {}
resolve(value);
});
}

await extractURLs();

// Output message to indicate when the script is done
console.log('Records have been updated with extracted URLs from the hyperlink field.');



If you can show me a few different examples, I might be able to come up with a corresponding formula
(Text containing the link and text into which the link is inserted)

Is the long text field into which you are inserting the link a rich text format?


Examples of the rich text are important to see what is going wrong. I suggest you find a record where the urls are not being extracted as expected, write a script that outputs the markdown of that rich text field, and then put that markdown into a regex tester to see what is going on.

For example, rich text fields support two different types of markdown links. You only test for a single type of markdown link, not the other. Or maybe you are looking for links that are not actual markdown links but plain urls? Look for patterns in the urls you are finding versus the ones you aren't.

By the way, several things about this script seem unnecessarily complicated.


First off, I'd like to clarify that the script did work for my use case. I may have put this thread into the wrong category (maybe it should be Show and Tell) but I thought feedback on how the script could be improved would also be nice.
Hi @Sho, the field is a rich text formatted field that has text (a google document title) with the text being hyperlinked to the corresponding google doc.
Hi @kuovonne I understand the need to see examples and as a said above, the field is a rich text formatted field that has text (a google document title) with the text being hyperlinked to the corresponding google doc. I'm curious how you would test for the other markdown type. Also, it did get complicated as a result of me trying to work through iterations of troubleshooting. I kept having the script terminate at various places and I put in outputs to see where it was when that happened. I'm also curious what could have made it more simple, hence the reason for wanting to see how the script could be improved. Since I couldn't find a direct way to get the hyperlink from text on the community forum, I wanted to post this so someone else who may need to do that could have a reference.


Kuovonne is correct that there are two types of links in the rich format for long text fields.
The scripting you have shown supports one type.

If you replace the following part of the scripting with this one, it should support both types of links.



// Regular expression to extract URLs from Markdown-style hyperlinks
const urlRegex = /\[.*?\]\((.*?)\)|<(.*?)>/g;

// Loop through qualified records and extract URLs
for (let i = 0; i < records.length; i++) {
let recID = records[i].id;
let hyperlinkContent = records[i].getCellValue(hyperlinkField);
if (hyperlinkContent !== null && typeof hyperlinkContent === 'string') {
// Extract URLs from the hyperlink field using the regular expression
let match;
let extractedUrls = [];
while ((match = urlRegex.exec(hyperlinkContent)) !== null) {
if(match[1])extractedUrls.push(match[1]);
if(match[2])extractedUrls.push(match[2]);
}




Kuovonne is correct that there are two types of links in the rich format for long text fields.
The scripting you have shown supports one type.

If you replace the following part of the scripting with this one, it should support both types of links.



// Regular expression to extract URLs from Markdown-style hyperlinks
const urlRegex = /\[.*?\]\((.*?)\)|<(.*?)>/g;

// Loop through qualified records and extract URLs
for (let i = 0; i < records.length; i++) {
let recID = records[i].id;
let hyperlinkContent = records[i].getCellValue(hyperlinkField);
if (hyperlinkContent !== null && typeof hyperlinkContent === 'string') {
// Extract URLs from the hyperlink field using the regular expression
let match;
let extractedUrls = [];
while ((match = urlRegex.exec(hyperlinkContent)) !== null) {
if(match[1])extractedUrls.push(match[1]);
if(match[2])extractedUrls.push(match[2]);
}




Thanks Sho. I appreciate the knowledge for sure.


Piggy backing on this thread to share. Custom scripts are unfortunately disabled in my enterprise, however I came up with an insane alternate solution. I kind of can’t believe this actually worked, but sharing here in case it helps anyone else in the future. This solution relies on two automations and a formula.

Automation 1:

  1. Trigger: When record enters a view (or other trigger depending on your needs)
  2. Send an email
    • To: email address from Automation 2
    • Subject: {Airtable record ID from trigger} from trigger
    • Body: {Long text field containing hyperlink} from trigger

Automation 2:

  1. Trigger: When email is received
  2. Update Record
    • Table: same from Automation 1 trigger
    • Record ID: email {subject}
    • Fields: insert email {body} value into destination field, ex. “Unmarkeddown Text”

Extracted URL Formula field:

  • REGEX_EXTRACT({Unmarkeddown Text}, '\\((.*?)\\)')



To recap, Automation 1 outputs an email for each individual record to be updated, with the subject line as record id and the body as the rich text field containing the hyperlink. Automation 2 receives that email and dumps the email body into a new field, resulting in an non-markdown version of the text with the URL exposed. Lastly, the formula field extracts the URL.




Love this insane workaround ​@Mike S Human ingenuity at work!


Here’s an alternate way of doing this:

I don’t know JavaScript and I try to avoid RegEx if I can, so I accomplish this in a completely no-code way that doesn’t require any programming code at all.

Make’s text parsing tool offers a “match elements” module that will automatically extract all the URLs from all of the hyperlinks in a rich text field — no matter how many hyperlinks there are!

And it returns all the URLs as individual bundles, so you can iterate through each URL to do whatever you want to do with each one!

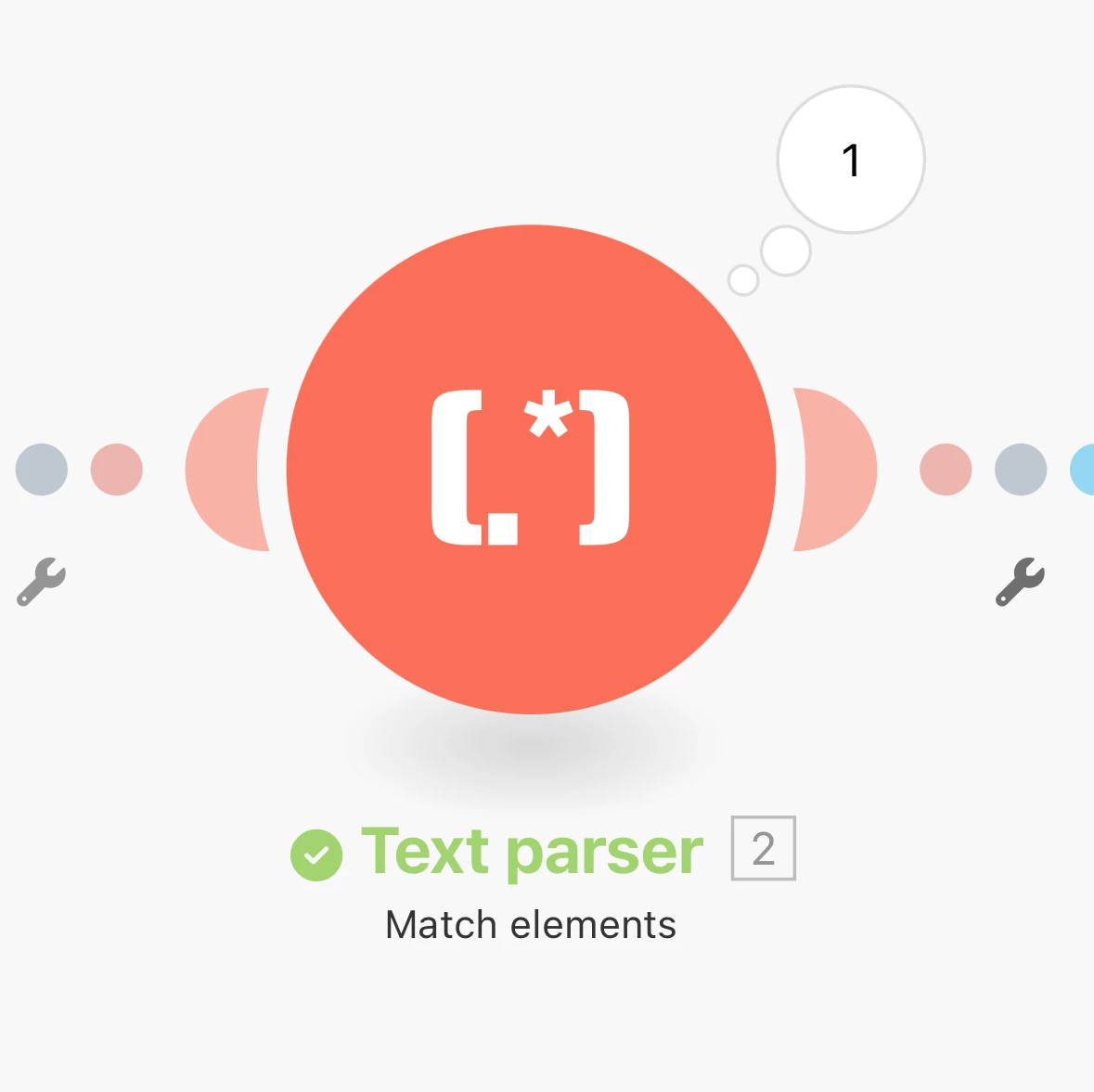

Check out my screenshot below to see how easy this is to setup.

You simply choose “http address” from the dropdown menu and feed it a rich text field from Airtable.

If you’ve never used Make before, I’ve assembled a bunch of Make training resources in this thread.

For example, here is one of the ways that you could instantly trigger a Make automation from Airtable.

- ScottWorld, Expert Airtable Consultant
