Hello,

Any idea how I would transform monthly totals into a cumulative total over time?


I’ve tried using an aggregate transform (presumably a count operator is what would do the trick?), but it keeps telling me wherever I insert it that is doesn’t belong 😐


Basically, I would like to show two different versions of the same data; displaying the number of records created on a table over time by:



  • Total each month (bar)

  • Cumulative total over time (line)

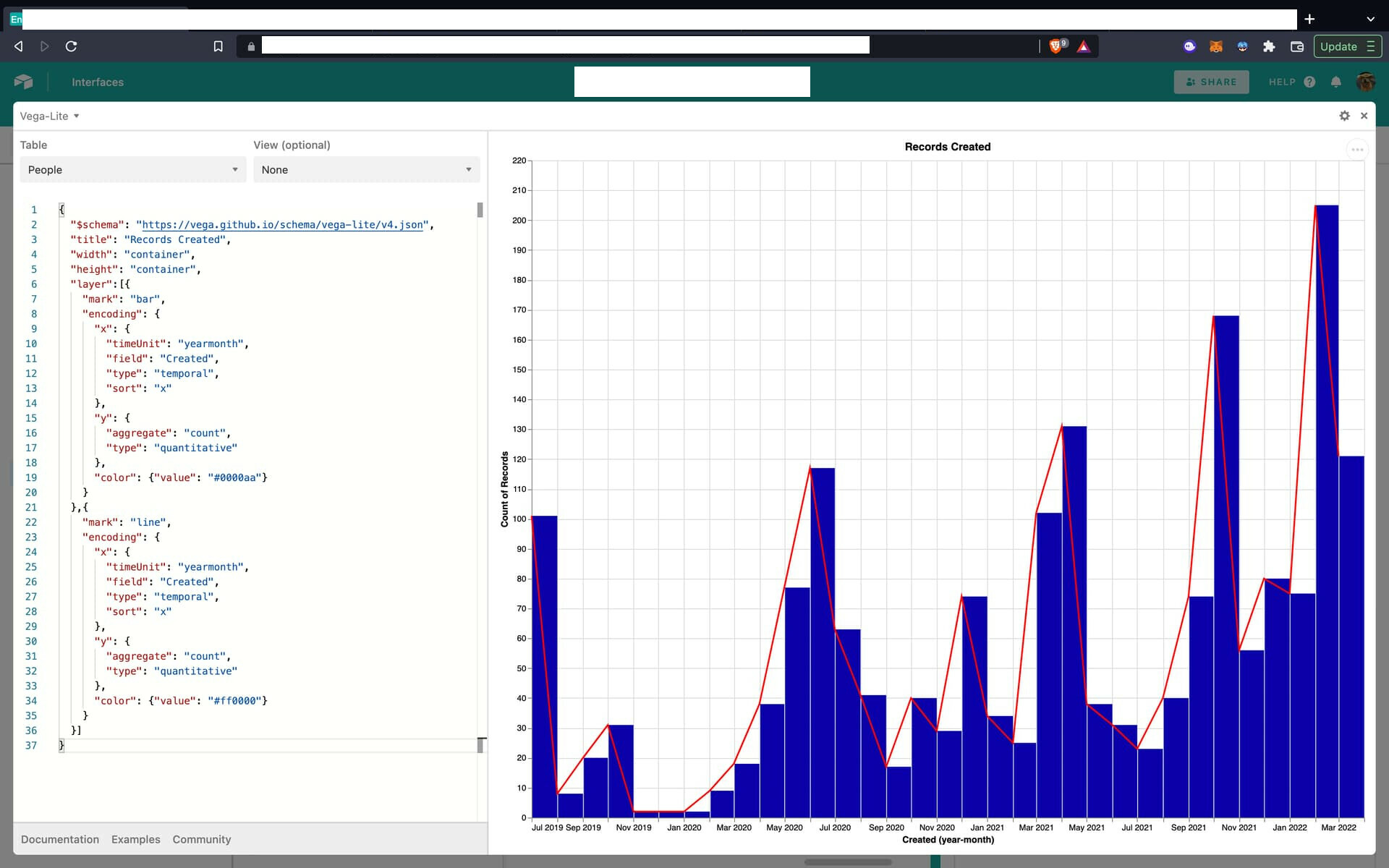

I’m able to layer a line chart and a bar chart of the month-by-month totals like so:


{

  "$schema": "https://vega.github.io/schema/vega-lite/v4.json",

  "title": "Records Created",

  "width": "container",

  "height": "container",

  "layer":a{

    "mark": "bar",

    "encoding": {

      "x": {

        "timeUnit": "yearmonth",

        "field": "Created",

        "type": "temporal",

        "sort": "x"

      },

      "y": {

        "aggregate": "count",

        "type": "quantitative"

      },

      "color": {"value": "#0000aa"}

    }

  },{

    "mark": "line",

    "encoding": {

      "x": {

        "timeUnit": "yearmonth",

        "field": "Created",

        "type": "temporal",

        "sort": "x"

      },

      "y": {

        "aggregate": "count",

        "type": "quantitative"

      },

      "color": {"value": "#ff0000"}

    }

  }]

}

How could I factor the cumulative total as well for the line graph?


Thanks 🙂

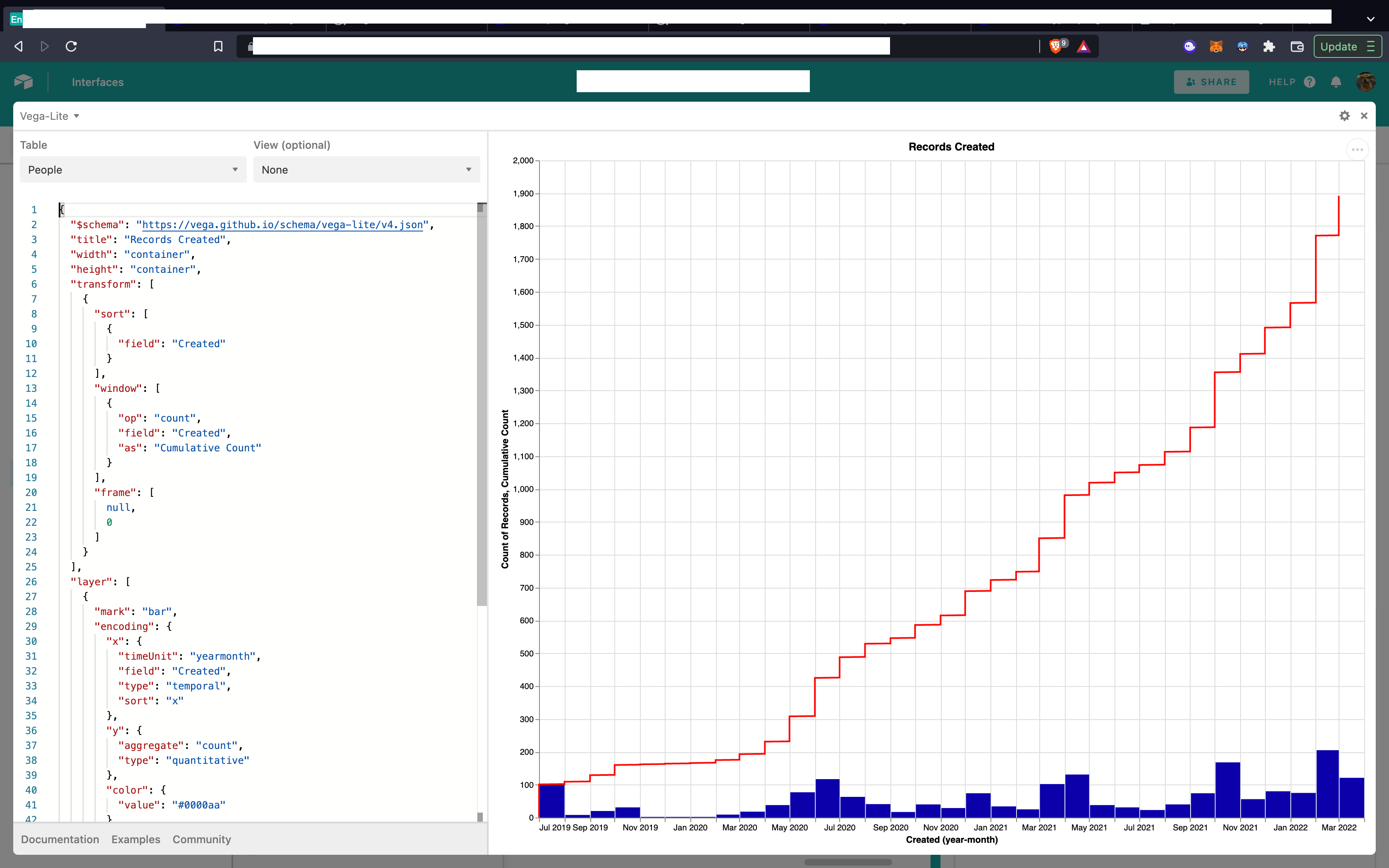

Oh, ha! I did it…


{

  "$schema": "https://vega.github.io/schema/vega-lite/v4.json",

  "title": "Records Created",

  "width": "container",

  "height": "container",

  "transform": :

    {

      "sort": :

        {

          "field": "Created"

        }

      ],

      "window": :

        {

          "op": "count",

          "field": "Created",

          "as": "Cumulative Count"

        }

      ],

      "frame": :

        null,

        0

      ]

    }

  ],

  "layer": :

    {

      "mark": "bar",

      "encoding": {

        "x": {

          "timeUnit": "yearmonth",

          "field": "Created",

          "type": "temporal",

          "sort": "x"

        },

        "y": {

          "aggregate": "count",

          "type": "quantitative"

        },

        "color": {

          "value": "#0000aa"

        }

      }

    },

    {

      "mark": "line",

      "encoding": {

        "x": {

          "timeUnit": "yearmonth",

          "field": "Created",

          "type": "temporal",

          "sort": "x"

        },

        "y": {

          "field": "Cumulative Count",

          "type": "quantitative"

        },

        "color": {

          "value": "#ff0000"

        }

      }

    }

  ]

}

credit where credit is due though - thanks to this example: Cumulative Frequency Distribution | Vega-Lite …I still do not at all understand Vega-Lite syntax / modeling / data structures… but can haz win for nau!
