Display a progress bar in Interfaces

  • July 12, 2024
  • 2 replies
  • 309 views

JBJ
Forum|alt.badge.img+17
  • Known Participant

Hi all,

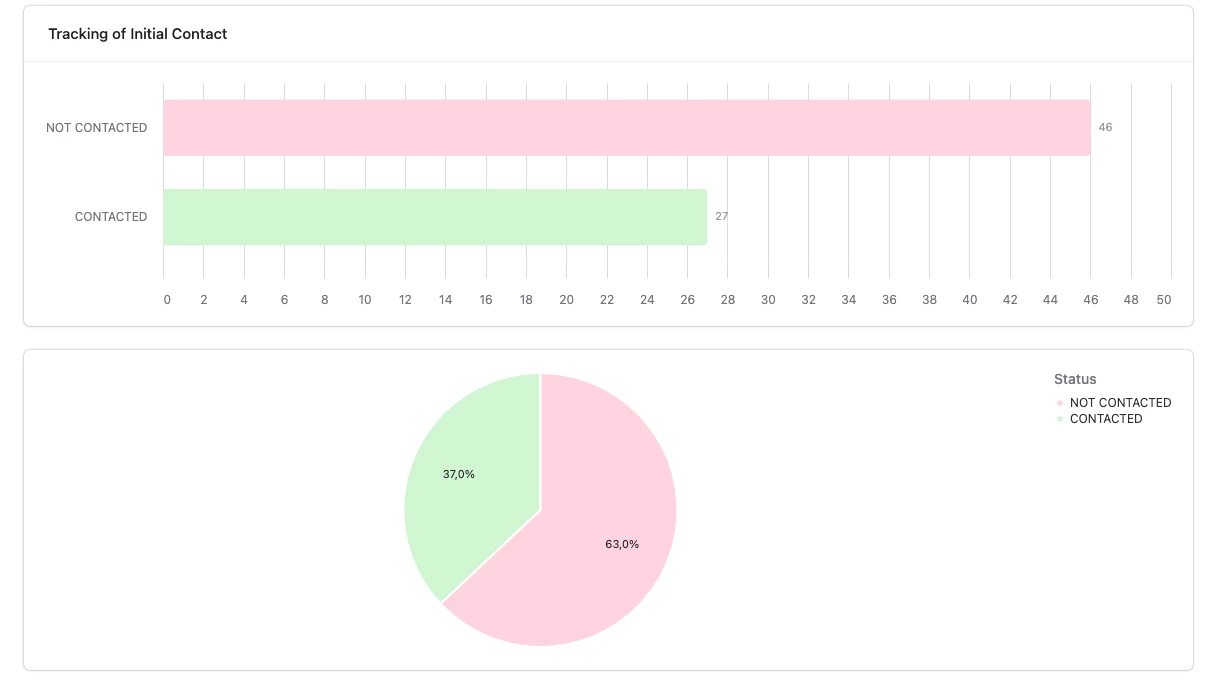

1. In my Interface dashboard, I'd like to be able to display the percentage of companies I got in touch with against the monthly goal of companies to contact. As of now, I visualized this as a bar chart, but I would like instead to visualize it as a progress bar.

2. In my pie chart below, I get percent values with one decimal digit. Instead, I would like to display integers, but I couldn't find a feature to edit the number formatting.

Do you guys know if what I'm looking for is possible?

Thanks.

PS: I saw that people had already asked a similar question, but since the threads were quite old I thought I might as well resurface the topic.

2 replies

Pascal_Gallais-
Forum|alt.badge.img+21

Hello,

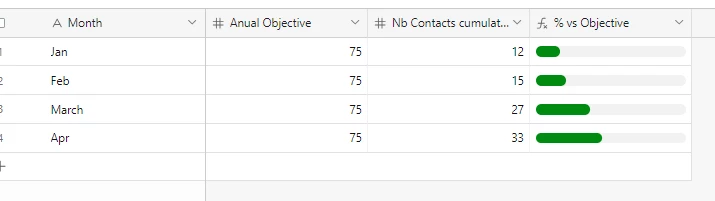

You can display a progress bar in a list within an interface:

To do that, you need to define it in the table called by your list:

% vs Objective is a formula :

{Nb Contacts cumulative}/{Anual Objective}

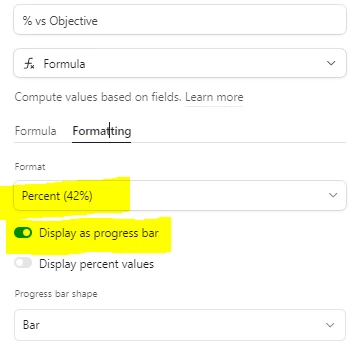

With following formatting options:

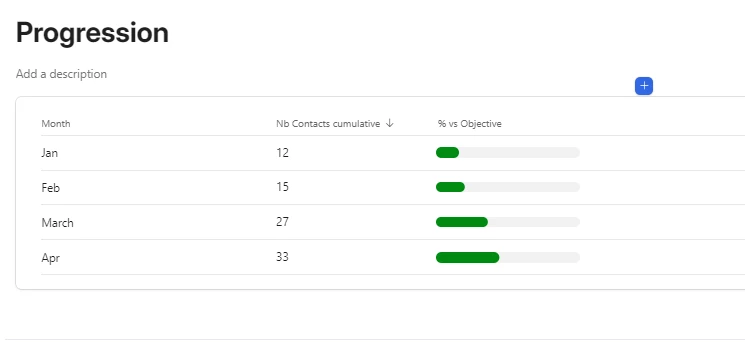

This field can then be added as such in a list within an interface.

Regards,

Pascal










JBJ
Forum|alt.badge.img+17
  • Author
  • Known Participant
  • July 12, 2024

Hello,

You can display a progress bar in a list within an interface:

To do that, you need to define it in the table called by your list:

% vs Objective is a formula :

{Nb Contacts cumulative}/{Anual Objective}

With following formatting options:


This field can then be added as such in a list within an interface.

Regards,

Pascal










Hi @Pascal_Gallais-,

Thanks for your help. Not the best option to me compared to what dashboards look like on Metabase.
