We have a monthly weekend project that includes many tasks within a 24 hour window, starting at a large variety of times. While a Gantt is more geared towards longer term projects, it would still be nice to be able to see the Gantt offer the ability to drill down to a day view, and then display based off of all the start/end times.

Hi @Ray_Perez, and welcome to the community!

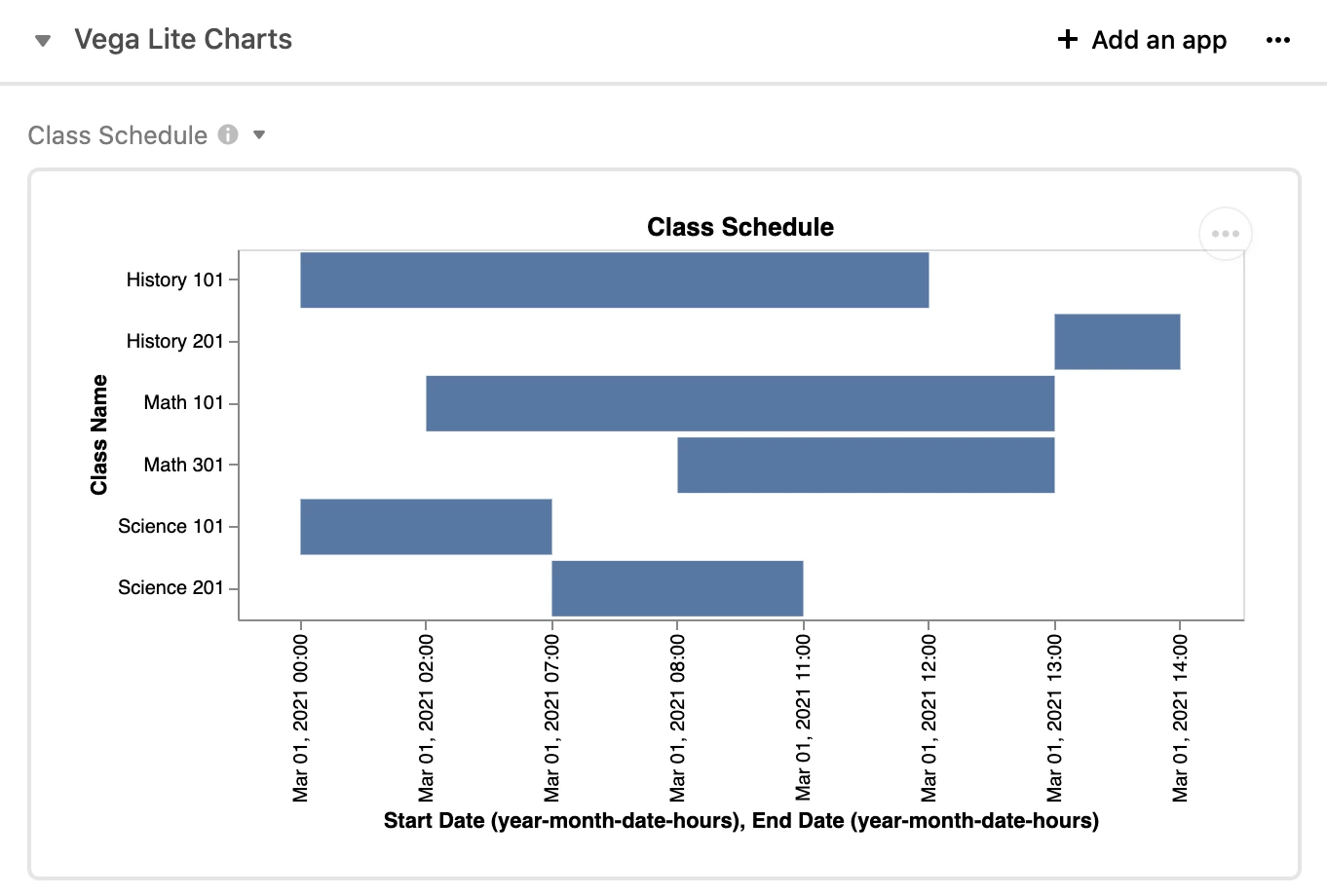

I don’t believe the new Gantt view feature supports this level of data granularity but totally possible if you can craft it in Vega-Lite. In the Airtable version, one day is the smallest possible task range, whereas, in Vega it’s millisecond-level precision.



{

  "$schema": "https://vega.github.io/schema/vega-lite/v4.json",

  "title": "Class Schedule",

  "width": "container",

  "height": "container",

  "mark": "bar",

  "encoding": {

    "y": {

      "field": "Class Name",

      "type" : "nominal"

    },

    "x": {

        "timeUnit": "yearmonthdatehours",

        "field": "Start Date",

        "type": "ordinal"

    },

    "x2": {

      "timeUnit": "yearmonthdatehours",

      "field": "End Date"

    }

  }

}

Very nice workaround! With the current Gantt view limitations, this option should work. I just installed the app and set the necessary field for my base, and it worked like a charm. Never previously worked with Vega-Lite. Is it possible to force it to use a 12-hour format, instead of a 24-hour format? I was searching around the Vega-lite documentation, but wasn’t yet able to locate how to force the format.

Very nice workaround! With the current Gantt view limitations, this option should work. I just installed the app and set the necessary field for my base, and it worked like a charm. Never previously worked with Vega-Lite. Is it possible to force it to use a 12-hour format, instead of a 24-hour format? I was searching around the Vega-lite documentation, but wasn’t yet able to locate how to force the format.



Yes - there’s a way. It’s probably going to require a transformation, so read up on that feature as it really sits at the core of all data handling.

Thanks for the assist, Bill. Most appreciated!
