Solved

Sharing Interface Captures in Automations

  • Sep 24, 2026 2:38 PM UTC
  • 7 replies
  • 122 views

Forum|alt.badge.img+1

Hello,



Our leadership uses reporting dashboards for visibility on projects happening amongst their teams.



There has been a request to send these in an email - however, we want to avoid any links that need to be clicked and would rather the interface images themselves populate in the email.



Is this something that can be done? Is it possible to do it without a third-party application?



Thank you!

Best answer by ScottWorld

​@mahaillieg

What you want to do is only possible by using 3rd-party document-generation tools.

Once you use one of these 3rd-party tools, then you can automate the process to happen automatically on a regular schedule.

Here are the most popular 3rd-party apps for automatically generating documents from Airtable:

  1. DocsAutomator — creates Google Docs documents or PDF files.
  2. Typeflow — creates PDF files.
  3. DocuMint — creates PDF files.
  4. Make’s integrations — which can be integrated with any document-creation app or PDF-creation app of your choosing, such as PDFFiller or CraftMyPDF. You can even integrate something as simple as custom Microsoft Word documents. If you’ve never used Make before, I’ve assembled a bunch of Make training resources in this thread. For example, here is one way that you can instantly trigger a Make automation from Airtable.
  5. Fillout’s advanced forms for Airtable — Fillout lets you automatically generate custom PDF files from a form submission. I show off this feature on this Airtable podcast episode: Using Fillout to create an eSignature approval process with PDF file creation.

Hope this helps!

If you’d like to hire the best Airtable consultant to help you with this or anything Airtable-related, please feel free to contact me through my website: Airtable consultant — ScottWorld

View original

7 replies

TheTimeSavingCo
Forum|alt.badge.img+32

Hm, I don’t think this is possible I’m afraid

The only similar sort of thing I can think of is using some third party application to create a PDF that looks like your Interface and then sending that out in the email, and the Interface would still be available if users wanted to drill down into the data

Hopefully someone else has a better idea!


ScottWorld
Forum|alt.badge.img+35
  • Genius
  • Answer
  • Sep 24, 2026 3:19 PM UTC

​@mahaillieg

What you want to do is only possible by using 3rd-party document-generation tools.

Once you use one of these 3rd-party tools, then you can automate the process to happen automatically on a regular schedule.

Here are the most popular 3rd-party apps for automatically generating documents from Airtable:

  1. DocsAutomator — creates Google Docs documents or PDF files.
  2. Typeflow — creates PDF files.
  3. DocuMint — creates PDF files.
  4. Make’s integrations — which can be integrated with any document-creation app or PDF-creation app of your choosing, such as PDFFiller or CraftMyPDF. You can even integrate something as simple as custom Microsoft Word documents. If you’ve never used Make before, I’ve assembled a bunch of Make training resources in this thread. For example, here is one way that you can instantly trigger a Make automation from Airtable.
  5. Fillout’s advanced forms for Airtable — Fillout lets you automatically generate custom PDF files from a form submission. I show off this feature on this Airtable podcast episode: Using Fillout to create an eSignature approval process with PDF file creation.

Hope this helps!

If you’d like to hire the best Airtable consultant to help you with this or anything Airtable-related, please feel free to contact me through my website: Airtable consultant — ScottWorld


Forum|alt.badge.img+1
  • Author
  • Participating Frequently
  • Sep 24, 2026 5:37 PM UTC

Thanks all - I’ll look into if we can integrate third party and if we have existing enterprise access.


Nick_Gatens
Forum|alt.badge.img
  • Participating Frequently
  • Sep 25, 2026 6:18 AM UTC

You can do a version of this natively inside Airtable without any third party integrations or needing an enterprise account, but I imagine your success level would vary dramatically depending on how complex your interface/dashboard actually is and how frequently you need to send these emails. (I do have Enterprise level access, but built and tested on my personal Team plan!) I always end up trying to do as much natively in Airtable as I can, because it’s so hard in the org I work for to validate and approve third party tools like this.



---

Using an actual interface of mine as an example. This is a custom interface I built (working with Claude) to teach myself music. You can see a button here for “Email This Snapshot” - details below.

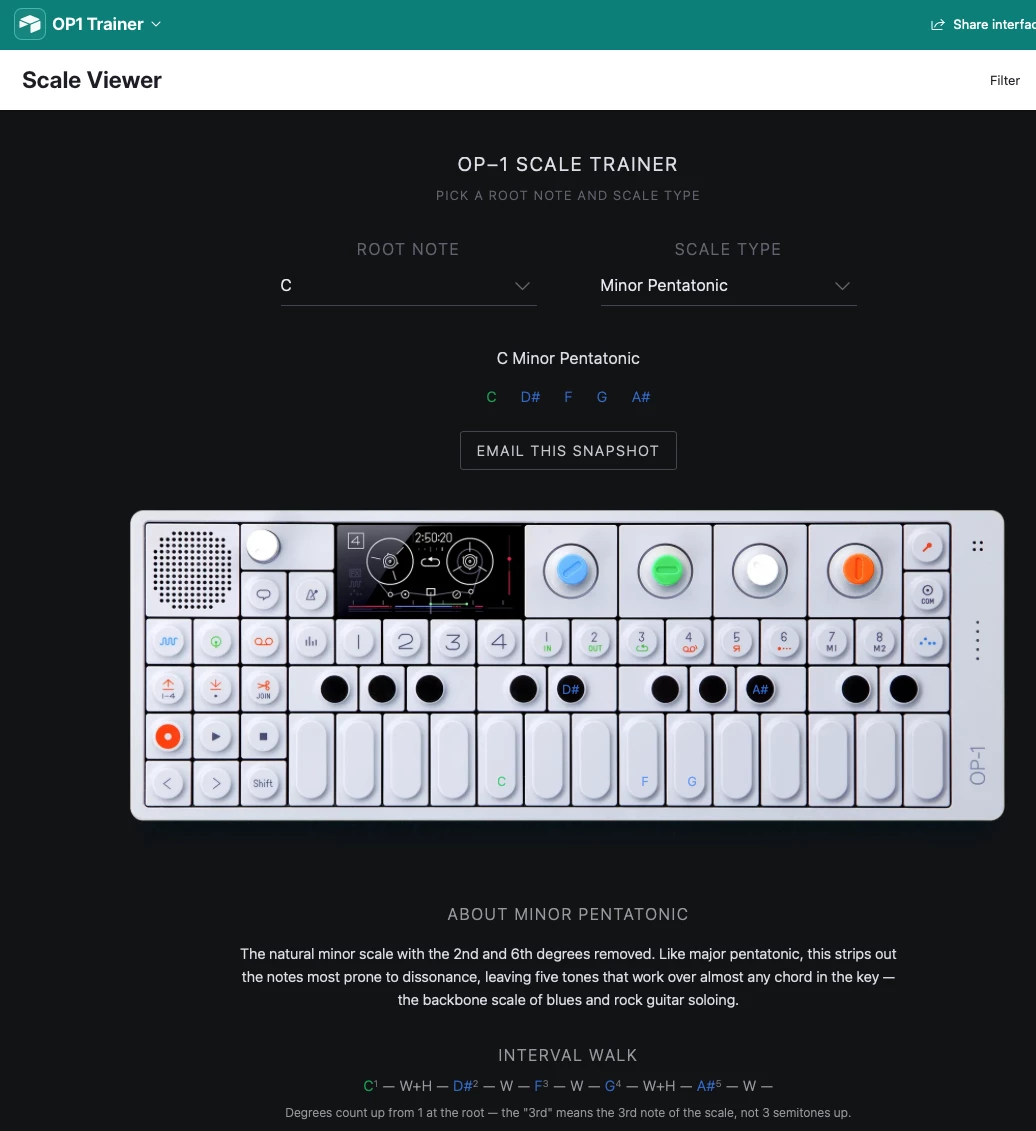

Screenshot of the music training interface



How this works:
When I click “Email This Snapshot”, it simply captures the data from my current Note / Scale selections in the interface (one could imagine it capturing status or other dashboard-type data in your use case), which it writes to a new record in a “Snapshots” table in the base.

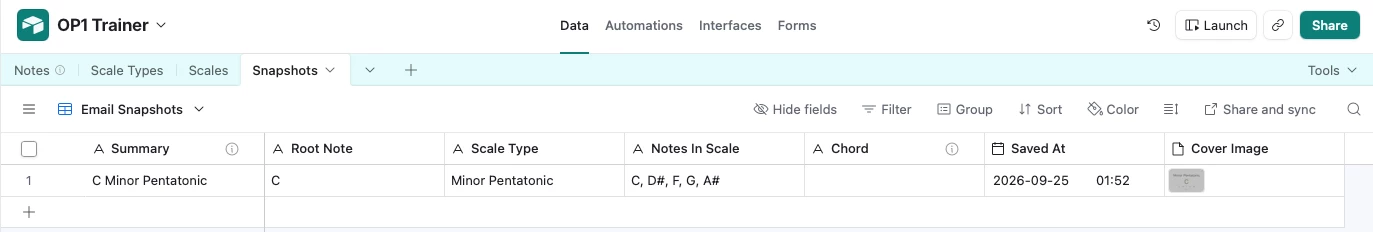

Screenshot of the Snapshots table in the base



This snapshot being created triggers an automation. It uses this snapshot data to generate an AI image (one could prompt this to create something reminiscent of the visual style of your dashboard/interface), which is attached to the “Cover Image” field and then sent via email.

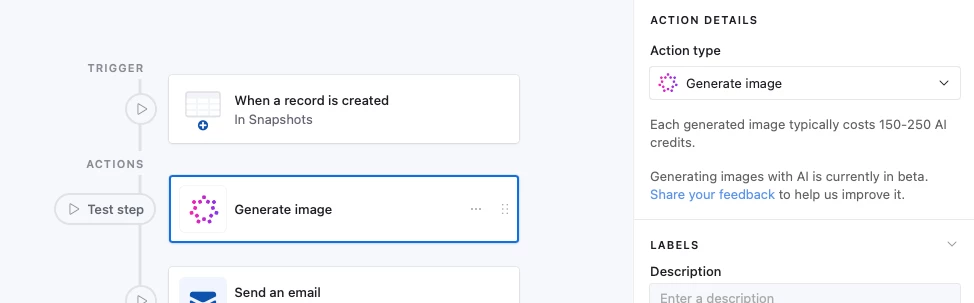

Screenshot of the email automation.

The end resulting email is something like this. In this case, listing the data from the fields I captured, but also attaching the Cover Image the automation created. Can obviously be modified further in the automation.

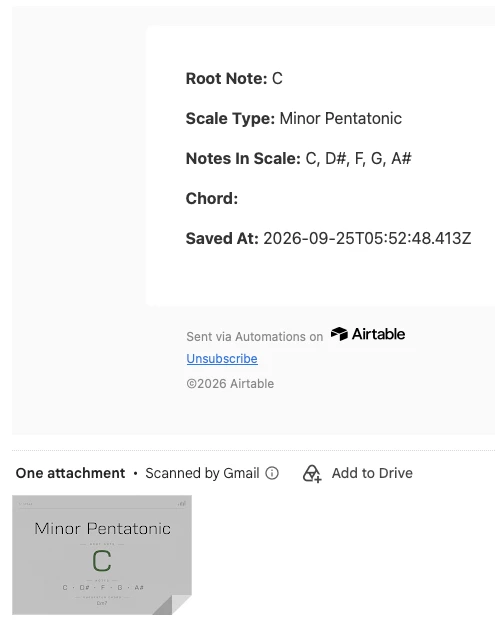

Automation’s email output

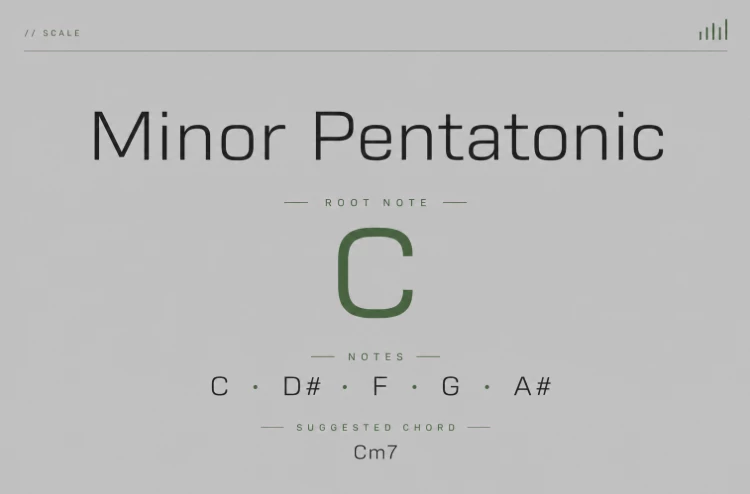

AI Generated “dashboard” image



Potential challenge/workaround:
This version requires me to manually click a button in the interface to send the email. That may or may not be a non-starter depending on your workflow! However, if it is and your dashboard is comprised of things like rollups/counts/sums of data or status flags/etc. that already exist in your base, I’d imagine you could probably schedule the creation of a “snapshot” record once every day that pulls together the same data that appears in your interface based on whatever your filter criteria might be and then operates the same way otherwise.


Forum|alt.badge.img+1
  • Author
  • Participating Frequently
  • Sep 28, 2026 1:27 PM UTC

You can do a version of this natively inside Airtable without any third party integrations or needing an enterprise account, but I imagine your success level would vary dramatically depending on how complex your interface/dashboard actually is and how frequently you need to send these emails. (I do have Enterprise level access, but built and tested on my personal Team plan!) I always end up trying to do as much natively in Airtable as I can, because it’s so hard in the org I work for to validate and approve third party tools like this.



---

Using an actual interface of mine as an example. This is a custom interface I built (working with Claude) to teach myself music. You can see a button here for “Email This Snapshot” - details below.

Screenshot of the music training interface



How this works:
When I click “Email This Snapshot”, it simply captures the data from my current Note / Scale selections in the interface (one could imagine it capturing status or other dashboard-type data in your use case), which it writes to a new record in a “Snapshots” table in the base.

Screenshot of the Snapshots table in the base



This snapshot being created triggers an automation. It uses this snapshot data to generate an AI image (one could prompt this to create something reminiscent of the visual style of your dashboard/interface), which is attached to the “Cover Image” field and then sent via email.

Screenshot of the email automation.

The end resulting email is something like this. In this case, listing the data from the fields I captured, but also attaching the Cover Image the automation created. Can obviously be modified further in the automation.

Automation’s email output
AI Generated “dashboard” image



Potential challenge/workaround:
This version requires me to manually click a button in the interface to send the email. That may or may not be a non-starter depending on your workflow! However, if it is and your dashboard is comprised of things like rollups/counts/sums of data or status flags/etc. that already exist in your base, I’d imagine you could probably schedule the creation of a “snapshot” record once every day that pulls together the same data that appears in your interface based on whatever your filter criteria might be and then operates the same way otherwise.

Thanks Nick! This was something more like I was looking for - going to give it a try and if so can swap my answer on this thread!




Nick_Gatens
Forum|alt.badge.img
  • Participating Frequently
  • Sep 28, 2026 7:54 PM UTC

No worries at all! It’s definitely a little bit of a hack-ish/workaround type solution to keep everything native in Airtable – pretty use case dependent but hopefully it can work for you. I end up doing a lot of this kind of thing because I frequently find myself stuck in situations where I can’t really use third party tools so I do what I can. 😂

Shoot me a message if you need any help; happy to assist!


imvalerian
Forum|alt.badge.img
  • New Participant
  • Oct 16, 2026 12:21 PM UTC

One more option if you want the dashboard to show up as a picture right in the email body, not as a link or attachment:

  1. Schedule an automation (daily or weekly) that gathers the same rollups and counts your interface shows, the same idea as Nick's snapshot record.
  2. Drop those numbers into a simple HTML layout that looks like your dashboard (a few number tiles and a small table is usually enough) and convert it to a PNG with an HTML to image service.
  3. Save the PNG somewhere with a permanent public URL. Airtable attachment links expire after a few hours, so don't point the email at those.
  4. Send the email from Make, Gmail or Outlook with an img tag pointing at that URL, so it renders inline and nobody has to click anything.

Leadership gets the exact numbers from the base every time, and nobody has to press a button. thirds.ai HTML to image is one way to do step 2, and it works from a Make scenario.

(Disclosure: I'm connected to thirds.ai.)
