Hey there,

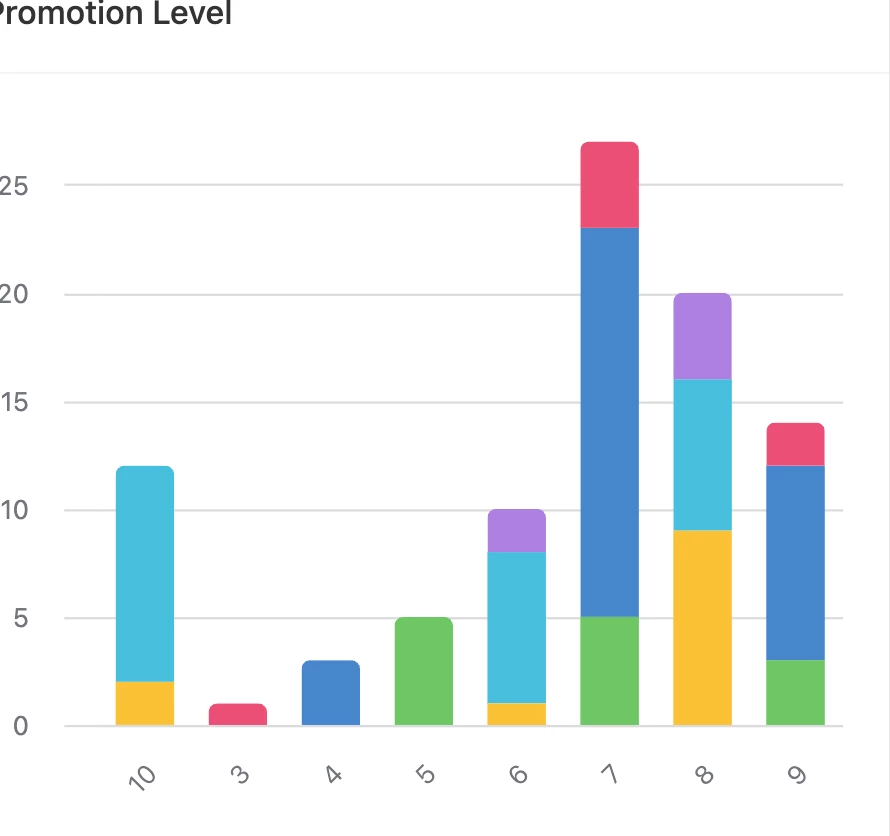

Fairly simple, but building a chart based on form submissions. For this use case, we want to represent the level that someone is being promoted into. The way this is represented on the chart element has the "10" before 3, 4, 5, etc. and I cannot figure out how to rearrange this.
Thanks!
Solved
Rearrange chart axis order in Interface Element
+4Best answer by TheTimeSavingCo
Thanks for the response! This seems to think that 10 < 3 in this, because my Order is by X value and Direction "ascending" - when I go "descending, 10 is the last number.
I'm wondering if it's sorting "alphabetically" instead of numerically? if that makes sense.
The (ugly) workaround I end up using is putting an invisible character in front of stuff so that it looks right:
And so the "1" that you see there is actually " 1". Note that I'm using an invisible character and not a space
Link to base
+3Check the order in which the is in the table you are pulling from. Assure that is in the appropriate order. If it is then verify your chart selection parameters are set appropriately.
If those don't work, we can look a bit deeper.
+4Check the order in which the is in the table you are pulling from. Assure that is in the appropriate order. If it is then verify your chart selection parameters are set appropriately.
If those don't work, we can look a bit deeper.
Thanks for the response! This seems to think that 10 < 3 in this, because my Order is by X value and Direction "ascending" - when I go "descending, 10 is the last number.
I'm wondering if it's sorting "alphabetically" instead of numerically? if that makes sense.
+31Thanks for the response! This seems to think that 10 < 3 in this, because my Order is by X value and Direction "ascending" - when I go "descending, 10 is the last number.
I'm wondering if it's sorting "alphabetically" instead of numerically? if that makes sense.
The (ugly) workaround I end up using is putting an invisible character in front of stuff so that it looks right:
And so the "1" that you see there is actually " 1". Note that I'm using an invisible character and not a space
Link to base
+4The (ugly) workaround I end up using is putting an invisible character in front of stuff so that it looks right:
And so the "1" that you see there is actually " 1". Note that I'm using an invisible character and not a space
Link to base
Thank you Adam!
This would have worked! I opted for an even uglier solution and made a separate formula field to sort by 🙃. Next time I will use an invisible character as you recommended!
IF({Proposed Level} = "11",11,
IF({Proposed Level} = "10",10,
IF({Proposed Level} = "9",9,
IF({Proposed Level} = "8",8,
IF({Proposed Level} = "7",7,
IF({Proposed Level} = "6",6,
IF({Proposed Level} = "5",5,
IF({Proposed Level} = "4",4,
IF({Proposed Level} = "3",3,
IF({Proposed Level} = "2",2,0))))))))))Login to the community
